Product covers an area of small, easy to process layout.
Material can be transported up, can also be transporteddown.
Low noise, simple structure, installation, easy maintenance.
Simple and reasonable structure, low energyconsumption, saving energy, trough wear small.
| Specification Parameter of All Models | |||||
|---|---|---|---|---|---|
| Model | YQCS-1250 | YQCS-2000 | YQcS-3500 | YQCS-4500 | YQCS-6000 |
| (t/h) Delivery quantity | 0.3 | 0.6 | 3 | 4 | 2 |
| (mn)Conveying height | 1250 | 2000 | 3500 | 4500 | 6000 |
| (mn) Spiral groove diameter | 300 | 350（400） | 500（610） | 500（610） | 650（800） |
| (hz/min) working frequency | 1500 | 1500 | 1000 | 1000 | 1000 |
| (kw) power | 2x0.1 | 2x0.2 | 2x0.75 | 2x1.5 | 2x2.2 |
| (v)Supply voltage | 380 | 380 | 380 | 380 | 380 |
| (a) Rated current | 2x0.4 | 2x0.8 | 2x2.2 | 2x4.1 | 2x4.1 |
| (mm)Synthetic Amplitude | -4 | -4 | -4 | -4 | -4 |

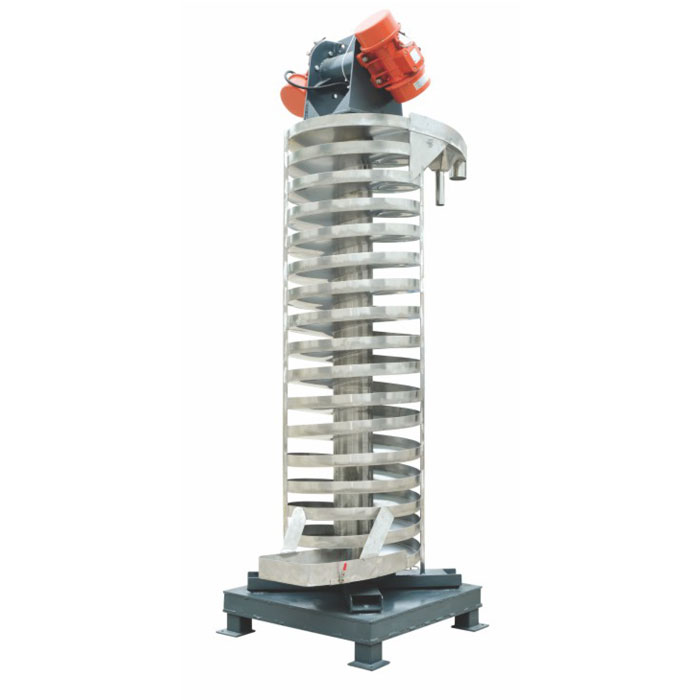

Vibrating vertical elevator machine is a new type of vertical vibration transmission equipment, the machine forall granular, flake, powdery solid material (viscosity is not high) can be transported. The vibrating conveyor canalso complete the drying and cooling of the material while lifting the material upwards.Separate trough type,closed two kinds of structure, and according to different process requirements, the design of the role of materialparticle classification to enhance the design and design of flammable and explosive materials of the hoist.
Widely used in mining,metallurgy,machinery,buildingmaterials，chemicals,rubber,medicine，electricity,food,food and other industries block，powder and short fibersolid material upgrade.
