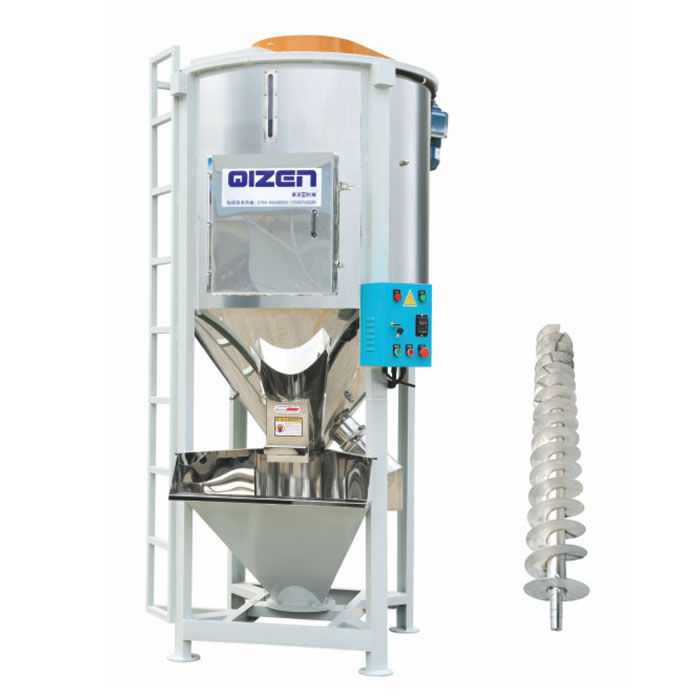

Vertical Screw Mixer

Features:

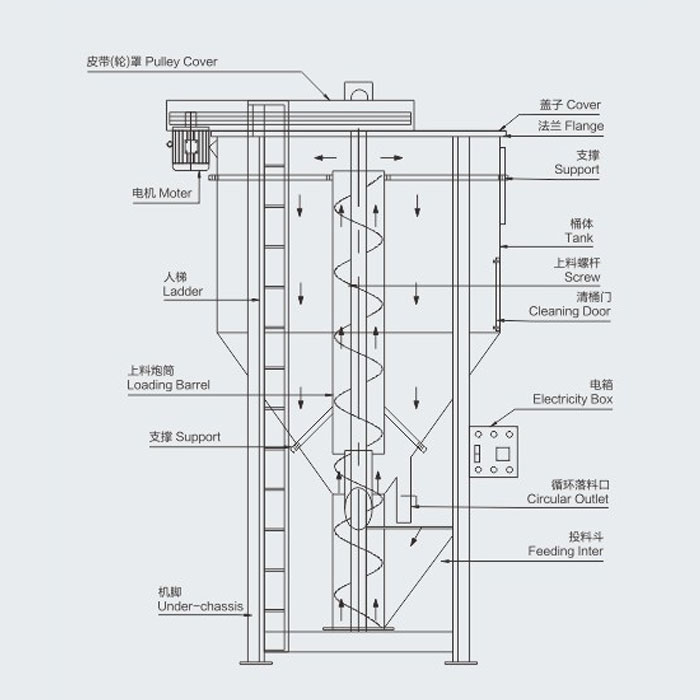

By the principle of spiral mixing working, conveying the material in the hopperto the top of the barrel by the screw main shaft,and then it will drop asumbrella-shape and keep mixing circularly all the way in order to mix equably.

With the function of automatic operation,overload protection,feeding limitalarm,etc. Less land occupation,large capacity,low power consumption,labor saving,convenient operation, fast and homogenized mixing. It can bewidely used in plastic granule,powder,plastic sheet,new and old plasticmaterial, mixing with color masterbatch and so on.

Application of industry: pipe material,plastic building material,plasticgranulator/pelletizing,color masterbatch producing, plastic modification,recycled materials processing, large injection molding,food,rice,beans andso on.

Inquire Now

Specification Parameter of All Models

Specification Parameter of All Models
Model Name Power Voltage Capacity Size
QZ-500 vetical Screw Mixer 4KW-4 380V 0.5T 1200 ×2650mm
QZ-10000  4KW-4  380V 1T 1500×2800mm
QZ-2000 5.5KW-4 380V 2T 1800× 3250mm
QZ-3000 7.5KW-4  380V 3T 2000×3750mm
QZ-5000 7.5KW-6  380V 4T 2400×4200mm
QZ-6000  11KW-6  380V 6T 2500×4500mm
QZ-7500  11KW-6  380V 7.5T 2600×5100mm
QZ-8000  11KW-6  380V 8T 2750×5100mm
QZ-10000  11KW-6  380V 10T  3000×5350mm
QZ-12000  15KW-6  380V 12T 3100×5500mm
QZ-15000 18.5KW-6 380V 15T 3200×6500mm
It can be made of different material according to customers’requirement, such as A3 iron plate,201SS,304SS

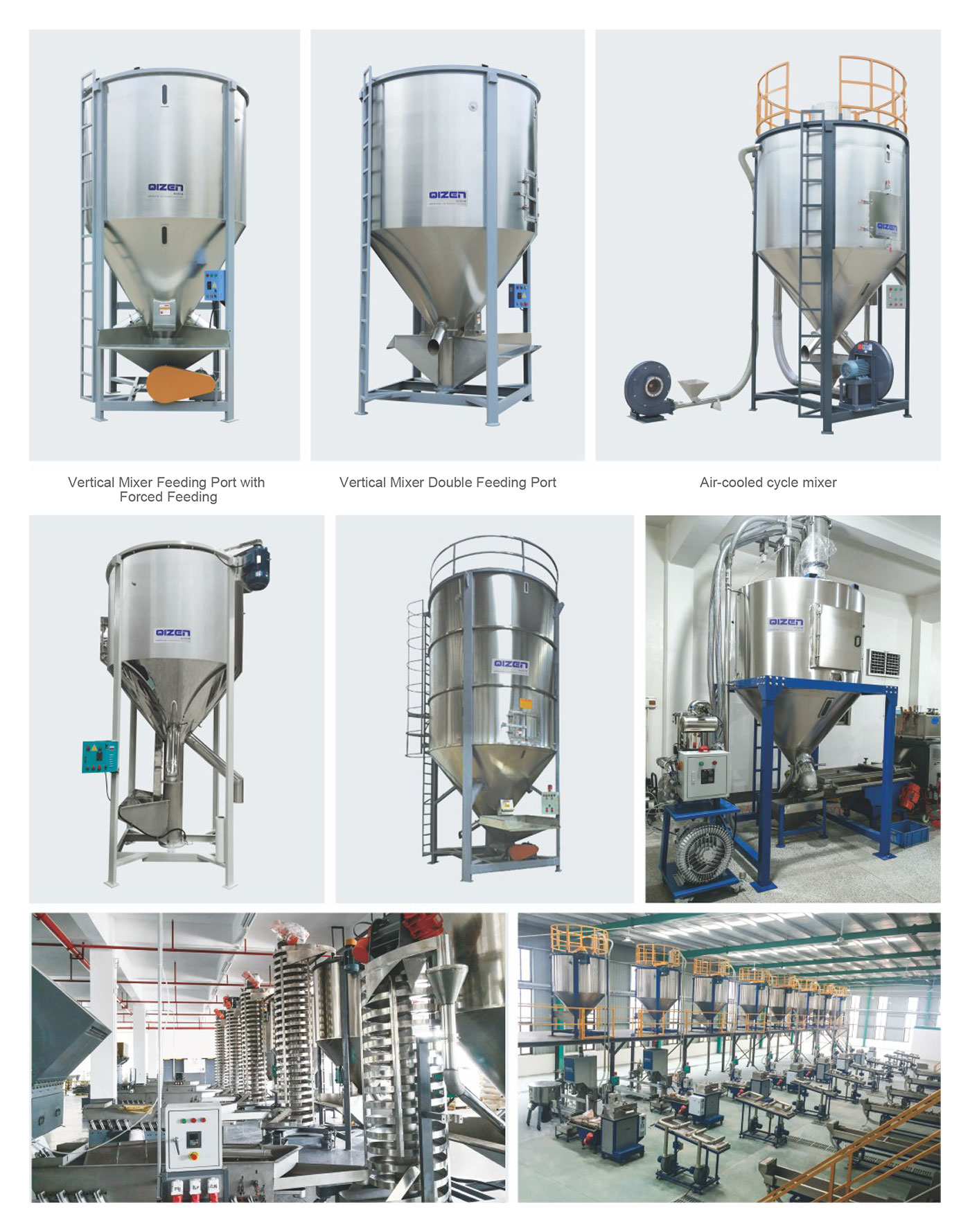

More Styles Vertical Mixer
