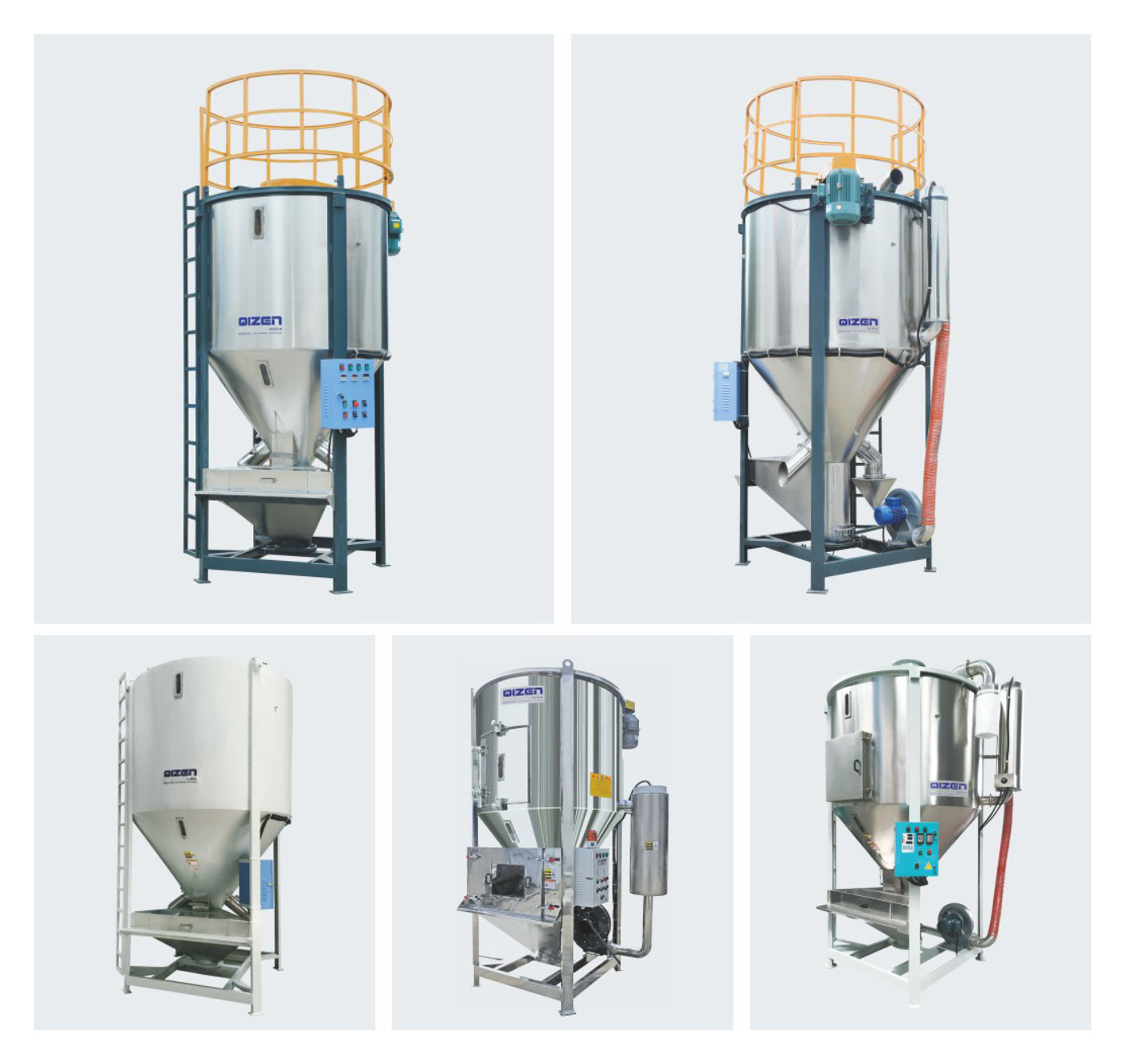

Vertical Drying Mixer

Features:

The standard model adopts double-layer designed,both of layers are made ofstainless steel,durable and easy to clean.The outside layer is made of A3steel plate or stainless steel,the intermediate layer is installed heat insulatingmaterial so that heat quantity not easy to lost,save energy and safe;

Hot air port designed specially,configure with high pressure drying specialblower,rapid penetration of hot air, the material is heated evenly and dry fast;

Hot air port designed specially,configure with high pressure drying specialblower,rapid penetration of hot air, the material is heated evenly and dry fast;

High frequency heater,less electricity and large heat quantity;

Adopts cabinet electricity control box,various functions are absolutely clear;

The operation is more humanized because of a variety of alarm function;

The dust collecting bag is configured to facilitate dust collection, and does notpollute the working place, and the workshop is clean;

Drying and mixing function are two-in-one.The machine can be used formixing and homogenizing material when turning off drying function.

Inquire Now

Specification Parameter of All Models

Specification Parameter of All Models
Model Name Power Voltage Capacity Size
QZ-500 Vertical Dryer
Mixer
4KW-4 15kw 0.5T 1200 ×2650mm
QZ-10000  4KW-4  20kw 1T 1500×2800mm
QZ-2000 5.5KW-4 20kw 2T 1800× 3250mm
QZ-3000 7.5KW-4  30kw 3T 2000×3750mm
QZ-5000 7.5KW-6  40kw 5T 2400×4200mm
QZ-6000  11KW-6  50kw 6T 2500×4500mm
QZ-8000  11KW-6  60kw 8T 2750×5100mm
QZ-10000  11KW-6  70kw 10T  3000×5350mm
It can be made of different material according to customers’requirement, such as A3 iron plate,201SS,304SS

Vertical Dry Mixer Description

lt mainly used in drying and mixing plastic granule, crushed material, plasticsheet and so on.This series of machines have the following characteristics:

Mixing and drying at the same time.The materials keeping flow state in thedrying process so that the heat quantity penetrates equably, the drying timebeing short and not easy to getting agglomerate;

Double barrel designed, the contact parts with material are all made of stainless steel, the middle layer is installed special moisturizing material thusto safety and energy-saving;

A high frequency heater,fast heating, less power consumption, comprehensive cost per ton of drying material is about 25-30 RMB per ton.(The percentage of moisture is below 1% and power cost 0.9 RMB / kwh,tested by PP granulation and mode LC-1000+);

Double exhaust port, exhausting moisture effectually, collecting dust,and nopollution;

Changing material or pigment conveniently and simply owing to the barrelwith entrance gate.
