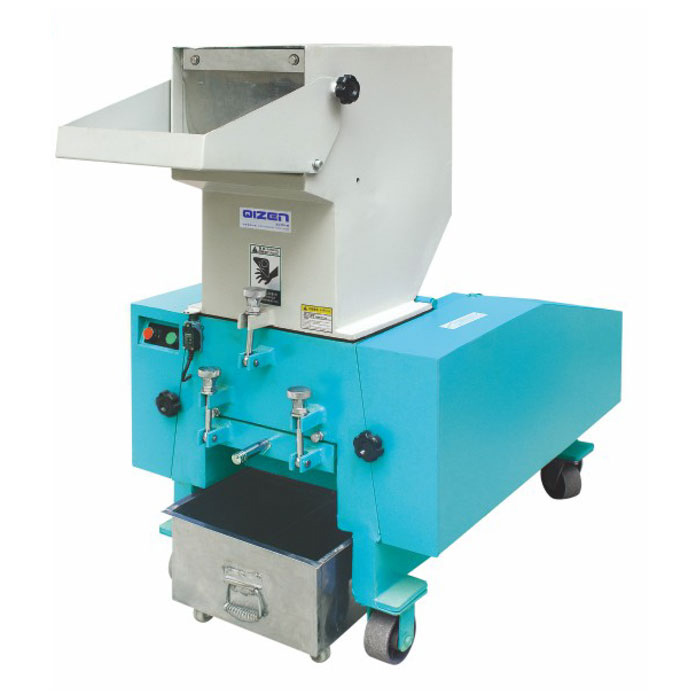

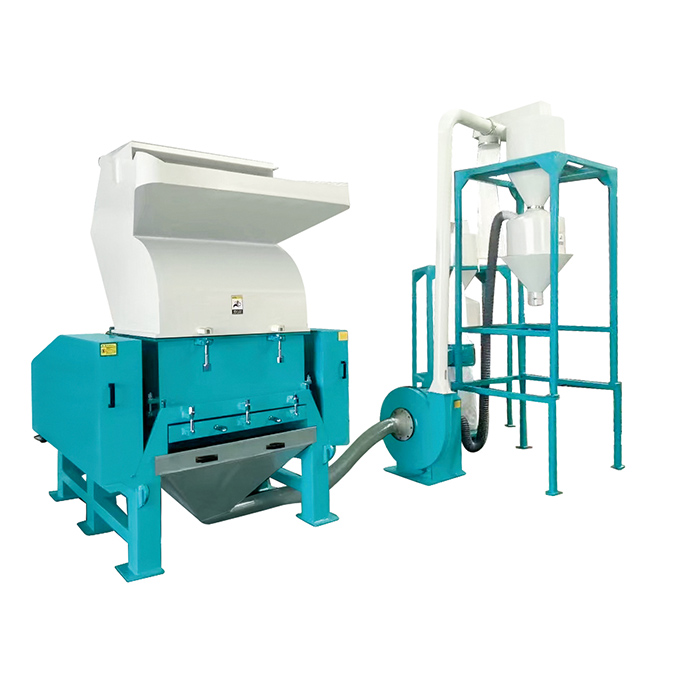

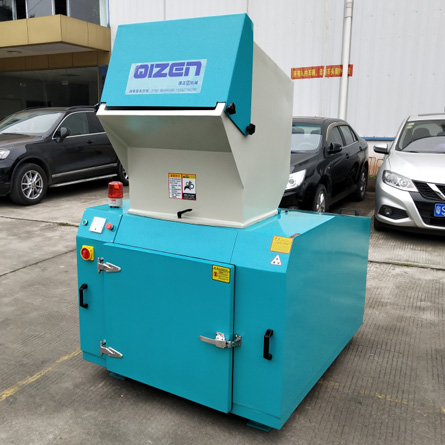

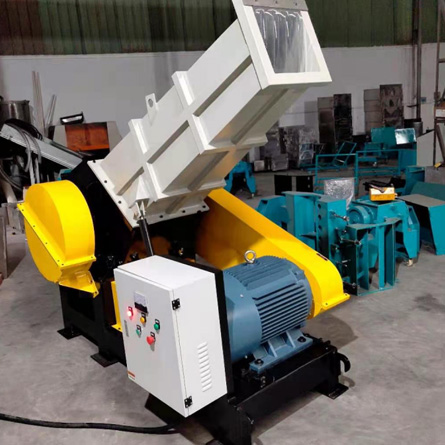

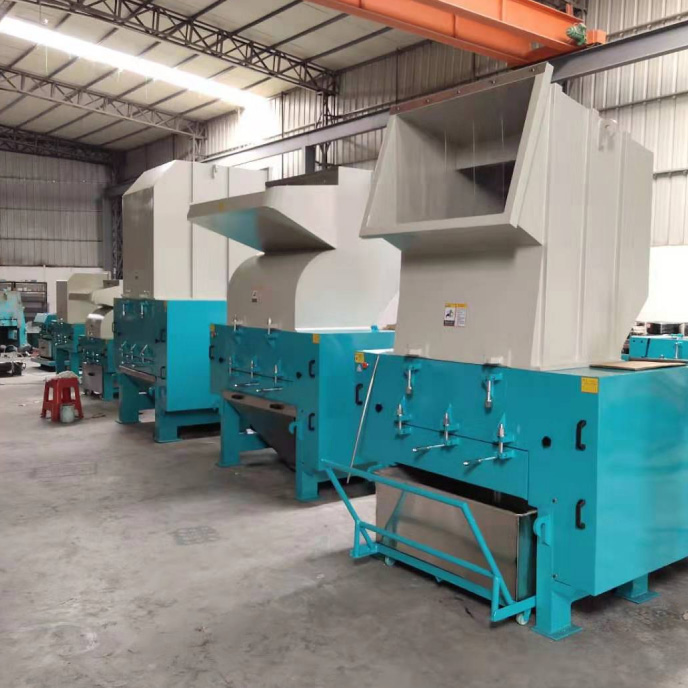

Plastic Crushing Machine

Features:

Power seat for the trapezoidal equipment design, the use of chip forcedecomposition, resulting in chip force times;

Heavy load bearing and oil seal device, and a sound insulation partition, caneffectively prevent vibration, to ensure that the processing of products from oilpollution;

Motor with overload protection system, and power supply chain system, withcleaning tool protection system to ensure the safety of cleaning;

Tool installation design retractable adjustment, with a few times after the morepolished, repeated use, life span;

Separation design, drop hopper,crushing chamber filter, easy to wash and wash;

Small models processed casters for easy movement.The big models are equippedwith adjustable shock absorber feet for stable operation.

Inquire Now

Specification Parameter of All Models

Specification Parameter of All Models
Model Motor power  Crushing Chamber  Rotary Blade Fixed Blade Crushing Capacity Dimension Weight
QZ-P190 3HP/2.2KW 190×160mm 9 2 30-50KG 850×500×1100 150kg
QZ-P260 5HP/4KW 270× 220mm 15 2 50-100KG 900×650×1200 220kg
QZ-P300 7.5HP/5.5KW 320×250mm 9 2 80-150KG 1000× 700×1150 300kg
QZ-P400 10HP/7.5KW 410×280mm 12 2 100-200KG 1100 ×860×1300 400kg
QZ-P500 15HP/11KW 500×320mm 15 2 200-300KG 1400×1000×1550 600kg
QZ-P600 2OHP/15KW 600×320mm 18 2 200-400KG 1450×1100×1620 800kg
QZ-P700 3OHP/22KW 710×460mm 21 2 400-700KG 1900×1400×1950 1500kg
QZ-P800 4OHP/30KW 810×460mm 24 4 400-800KG 2000×1500×2050 1800kg
QZ-P1000 6OHP/45KW 1020×650mm 30 4 600-1200KG 2300×1800×2400 3000kg

Materials That Can be Processed

Plastic bottles, plastic barrels, plastic pipes and all different kinds of plastic products.

Treated Material

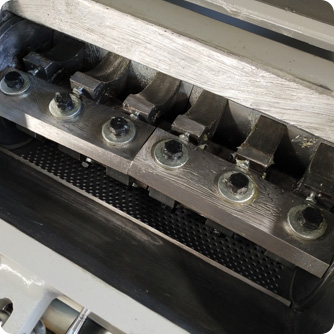

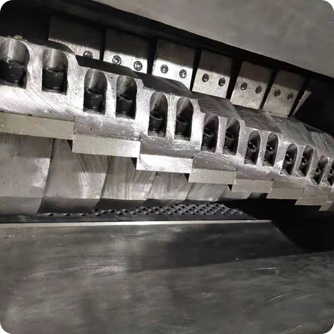

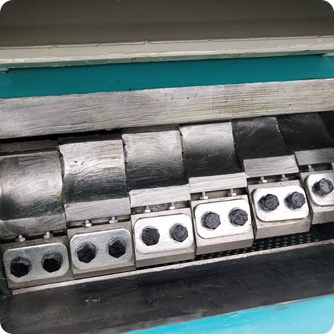

Different Knives Can Process Different Materials

  • Sheet Knives

  • Claw Knives

  • V-Type Knives

  • Flat Knives

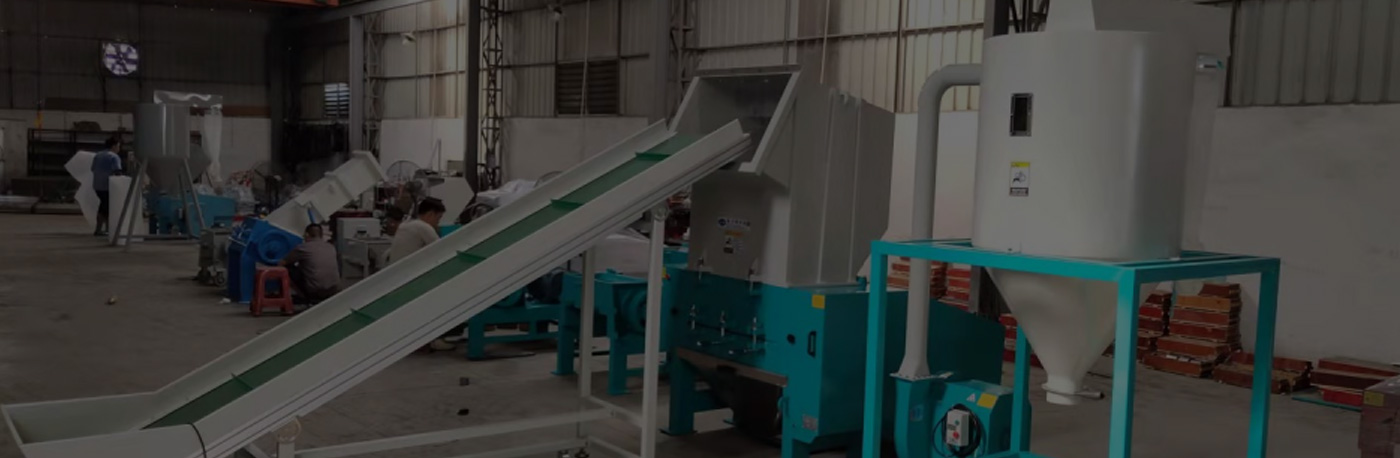

How Do Plastic Crusher Work?




Information we need before quotation

1. What capacity you want?

2. What kind plastic material you will process? (It is better to send us the photos about the material)

3. Do you require the size of the crushed material?

4. Please let me know if you have any other requirements for the machine.
