Diversification of pelletizing methods: such as water-cooled pull line cutting, air-cooled mold surface cutting, water ring mold surface cutting, eccentric water mist particles, underwater mold surface cutting.
Unique structural design
Easy to embed auxiliary equipment such as lubrication system circulating water system, vacuum exhaust system, save space;
The factory completed wiring, piping, shorten the installation and commissioning time.

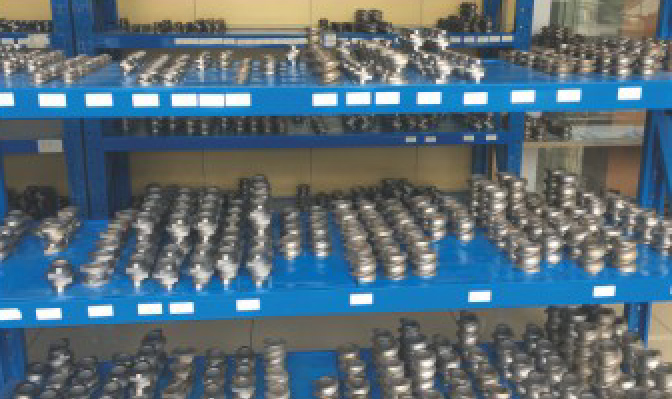

Screw components using precise design. To achieve a variety of transmission, mixing, pressure, extrusion and self-cleaning process byprecision finishing, flexible combination and interchangeability. The material used high-quality 38CrMoALA or W6MosCr4V2 material with special heat treatment so that it is high wear resistance and corrosion resistance.

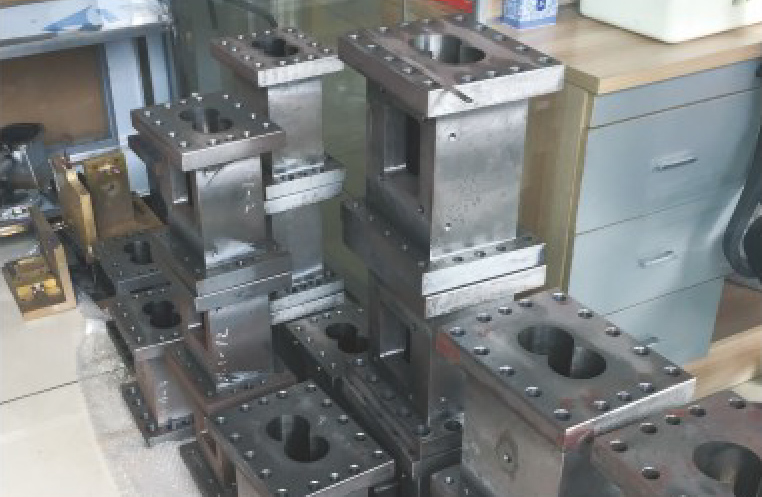

The modularity of the unit, the aspect ratio of the unit, the form of the barrel and the rod, the way of feeding, the way of changing the net and the way of cutting, the automatic control mode of the instrument can be combined according to the requirements of the material performance and the technological process. Extensive, versatile, and exclusive.

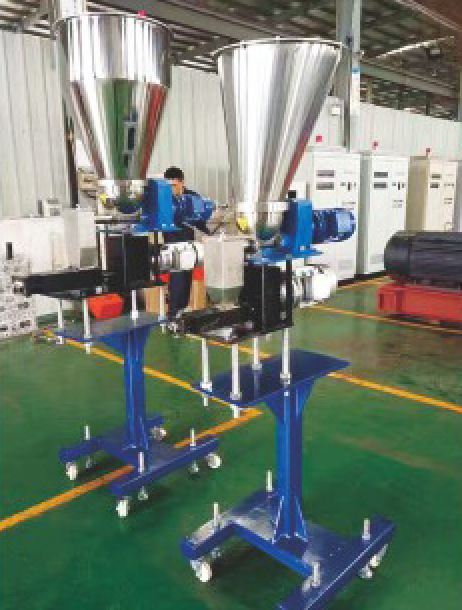

Diversified feeding mode: single screw, twin screw, hollow screw, forced feed, lateral feed, liquid filling system, etc. To meet different feeding requirements for powder, granules flake and liquid material.
New gear drive system
New parallel triaxial transmission program, deceleration and torque distribution integrated. With compact structure and imported key bearing;
Computer design optimization gear parameters, enhanced design safety margin;
The selection of transmission part is very particular. Ultra-high strength alloy carburizing steel, carburizing quenching, grinding process, tooth surface strengthening treatment to ensure high torque, high precision and low noise;
Lubrication method combining gear immersion lubrication and bearing forced lubrication.
