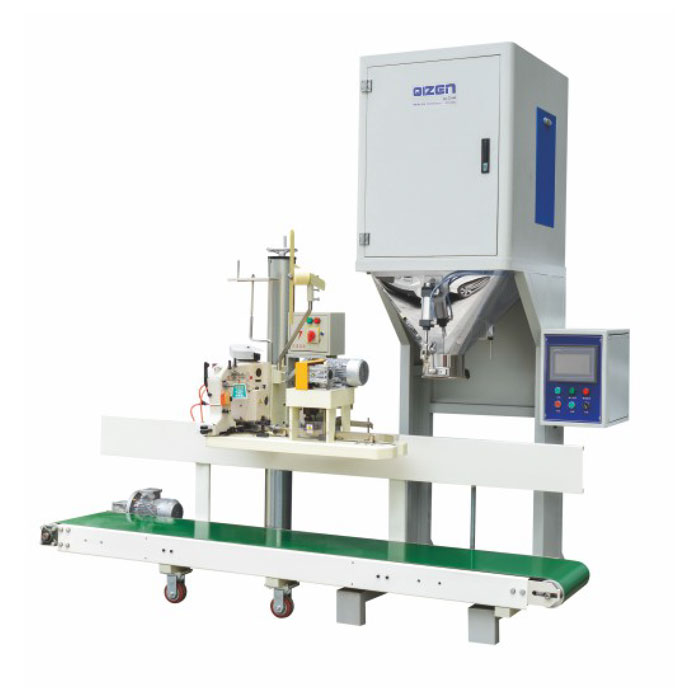

Automatic Weighing and Packaging Machine

Features:

The all parts contact with material are made of SUS304 stainless steel,easy to cleanup and package;

Standard type using METTLER-TOLEDO high-precision weighing module andcontrol system to ensure that the accuracy of precision and stability of the operation;

Can choose matching machine,folding machine,sewing machine,vacuum,heatsealing and other package technology to meet the different packaging requirements;

There are bucket-style packaging that is not easy to work in the externalenvironment of interference, the requirements of the packaging is also very loose,wide applicability.

Inquire Now

Specification Parameter of All Models

Specification Parameter of All Models
Model QZ-10 QZ-25 QZ-50
Weighing scope 5-10kg 10-25kg 20-50kg
Measuring accuracy Level0.2级 Level0.2级 LevelO.2级
Error ±0.2%F.S ±0.2%F.S ±0.2%F.S
Packing Capacity 260~320包Packet/H 240~300包Packet/H 240~300包Packet/H
Power AC220/50Hz/AC380/50Hz AC220/50Hz/AC380/50Hz AC220/50Hz/AC380/50Hz
Watt 3KW 3.5KW 3.5KW
Air supply 0.4~0.6Mpa 0.4~0.6Mpa 0.4~0.6Mpa
Air Consumption 0.3Nm3/h 0.3Nm3/h 0.3Nm3/h
It can be made of different material according to customers’requirement, such as A3 iron plate, 201SS, 304SS

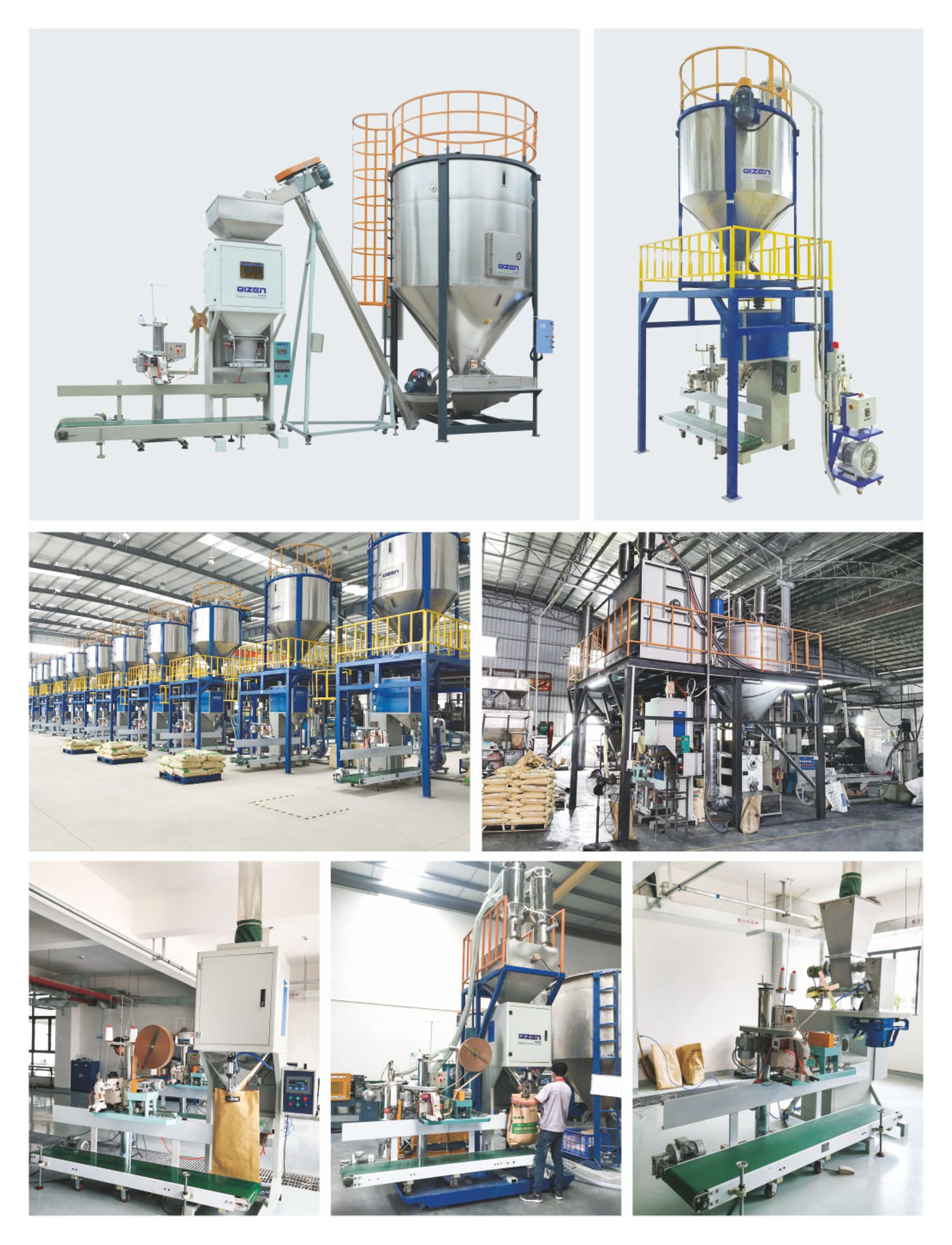

Automatic Weighing and Packaging Machine
